CFC Heat Treatment Fixtures: Enhancing Precision and Efficiency in Industrial Processes

In modern manufacturing and metallurgical industries, achieving consistent quality and efficiency during heat treatment processes is not optional — it is critical. Every cycle, every component, and every degree matters.

CFC heat treatment fixtures are not just tools — they are strategic assets that ensure precision, improve productivity, and protect valuable components during high-temperature operations.

For engineers, technicians, and manufacturers, these fixtures play a pivotal role in maintaining process accuracy, reducing failures, and increasing operational reliability. When performance, repeatability, and long-term durability are priorities, CFC fixtures become an essential part of the equation.

1. Ensuring Uniform Heat Distribution

One of the primary challenges in heat treatment is achieving consistent temperature across all components. Even minor inconsistencies can lead to distortion, residual stress, or material defects.

CFC heat treatment fixtures are designed to hold parts in precise positions, ensuring even heat transfer and minimizing product distortion. Properly supported parts ensure high-quality outcomes and reduce the risk of defects caused by uneven heating.

When every part sits exactly where it should, your results become predictable, repeatable, and reliable.

2. Improving Component Safety and Integrity

During high-temperature processes, components can warp, sag, or shift if not properly supported. Conventional steel fixtures — although optimized by generations of engineers — face the same limitations as all metals:

They can warp, sag, shift, creep, or even crack under extreme furnace conditions.

As metals approach their melting point, their usable strength decreases significantly. A cast steel base grid, for example, may show severe deformation after approximately 800 hours of service in a chamber heat treatment furnace — leading to reduced accuracy and potential scrap.

Material comparison data provided by Dr. Johannes Schröder (former Plansee employee) demonstrates that while ODS (Oxide Dispersion Strengthened) superalloys reach the highest usable temperatures among metals, C/C or CFC (Carbon Fiber Reinforced Carbon) stands apart. Compare with the Diagram below.

CFC materials can withstand temperatures above 1,400 °C and up to 2,000 °C or more, maintaining acceptable — and in some cases even increasing — usable strength in heat treatment environments.

This means greater dimensional stability, longer service life, and reduced risk of failure.

Fixtures should provide a stable, secure platform that prevents damage and maintains the geometric integrity of parts. By using CFC heat treatment fixtures, manufacturers can avoid costly rework, scrap, and downtime — ultimately saving money while preserving product quality.

Is your current fixture system truly supporting your quality goals — or limiting them?

3. Enhancing Process Efficiency

Efficient production depends on repeatable and reliable setups. CFC heat treatment fixtures streamline workflow by standardizing part placement, reducing manual adjustments, and enabling faster load and unload cycles.

Thanks to their very low C.T.E. (Coefficient of Thermal Expansion), only CFC grids and racks allow reliable automated handling and transportation of workpiece carriers in heat treatment systems.

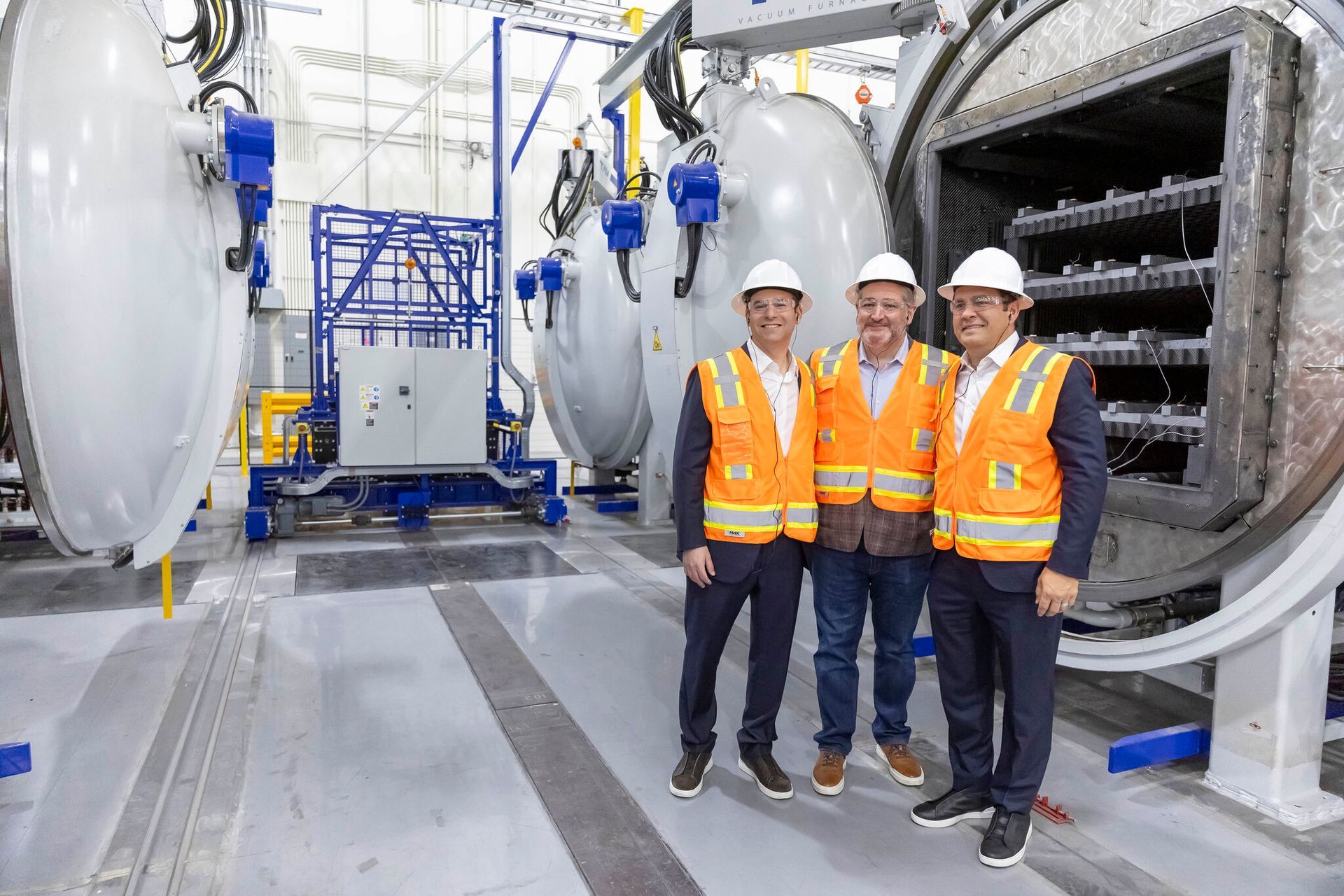

In fully integrated automated systems — such as those provided by High Temperature Concept — high-end CFC racks operate seamlessly within loading stations and transport systems.

For high-volume operations, this efficiency translates directly into:

• Increased throughput
• Reduced cycle time
• Lower labor intensity
• Higher profitability

When your fixtures move efficiently, your entire production line benefits.

4. Reducing Operational Failures

Human error remains one of the most common risks in manual component handling. Incorrect placement can lead to inconsistent results, distortion, and unnecessary waste.

CFC fixtures minimize this risk by providing precise guides and stable supports, ensuring that every part is correctly positioned before the heat treatment cycle begins.

Whether manually loading heat exchangers for vacuum brazing processes — such as operations performed for Modine Europe — or utilizing fully automated systems, fixture accuracy ensures consistent and predictable outcomes.

Consistency leads to reliability. Reliability builds trust — both internally and with your customers.

5. Supporting Complex and Custom Components

Modern manufacturing increasingly involves complex geometries and custom-designed parts that are difficult to secure during high-temperature processes.

CFC fixtures can be engineered to match unique designs, providing tailored support and precise alignment — particularly crucial in automotive, tooling, and aerospace industries where precision and quality standards are uncompromising.

Custom CFC racks, such as those designed for Rolls-Royce and used in HIP processes for titanium aircraft engine blades, demonstrate how advanced fixture solutions support even the most intricate components.

This flexibility ensures that highly complex parts are treated accurately without compromising shape, strength, or performance.

If your components are evolving — your fixtures should evolve with them.

Enhance Precision and Efficiency with CFC Fixtures, Grids, and Racks

CFC heat treatment fixtures are more than simple supports — they are a critical element of quality assurance, operational efficiency, and long-term process reliability.

By investing in high-quality CFC fixtures, manufacturers ensure:

• Uniform heat distribution
• Improved component integrity
• Reduced scrap and downtime
• Optimized productivity
• Greater automation compatibility

Whether for aerospace, automotive, tooling, energy, or other industrial applications, these fixtures empower engineers and technicians to achieve precision, minimize errors, and deliver consistent results.

In today’s competitive manufacturing landscape, leveraging CFC technology is not just an upgrade — it is a strategic advantage.

They protect your components.
They enhance efficiency.
They reduce operational risk.
They strengthen your reputation for quality.

Proper fixtures are not an expense — they are an investment in long-term success.
