Distortion Engineering and CFC Fixtures
Joerg Demmel • April 20, 2019
Distortion engineering: not just a heat treatment topic
“Distortion of machine parts during manufacturing continues to cause high economic losses. Heat treatment processes, especially quenching, are often thought to be solely responsible for size and shape changes that require extensive hard machining to meet the necessary accuracy and tolerances. For the past few years,
treating distortion problems as a system attribute of the entire process chain has become a widely accepted approach.” wrote Prof. H. W. Zoch.
The so called methodology of “distortion engineering” consider the processes of raw material for steel parts, e.g., rough-out or rolling, soft machining, heat treatment to hard machining. There are 3 stages of the methodology mentioned in the cited article: “Step 1 the measurement of size and shape changes… Influencing parameters like geometrical symmetry or quenching speed are then determined experimentally and quantitatively”. “Step 2 tries to understand distortion mechanisms, based on so-called “carriers of distortion potential,” e.g. row material chemical homogeneity, introduced stresses during soft machining steps and the parts microstructures over manufacturing steps. “All distortion potential carriers undergo the possibility to be released (like residual stresses) or introduced (like changes in symmetry by machining) during manufacturing chain.”
The Step 2 understanding distortion “should be supported by modeling and simulation”, Prof. H. W. Zoch goes on and he added: “but much development is needed to meet the required accuracy for practical application.”
High Temperature Concept's approach is here different, it’s not the time for every problem and not necessary to understand the distortion engineering 100 %, from bottom up. But, top down is promising some success for industry now! Because the main root reasons which cause distortion are clear. E. g. for soft machining metal cutting with sharp cutting edges and some optimal cutting speed avoid residual stresses or
for heat treatment the arrangement of the products in the Rack (2D and 3D),
a continuous heating, carburizing and quenching or cooling flow avoid stresses and after e.g. high pressure cooling and phase transformation distortion! Here we are at “Step 3 the compensation of distortion effects”. Mr. Zoch goes on with “…sometimes allows for compensation of distortion effects by inverting these influences, e.g., correction of out-of-roundness by inhomogeneous quenching process.”
Focused on experience HTC understood the main influences incl. the

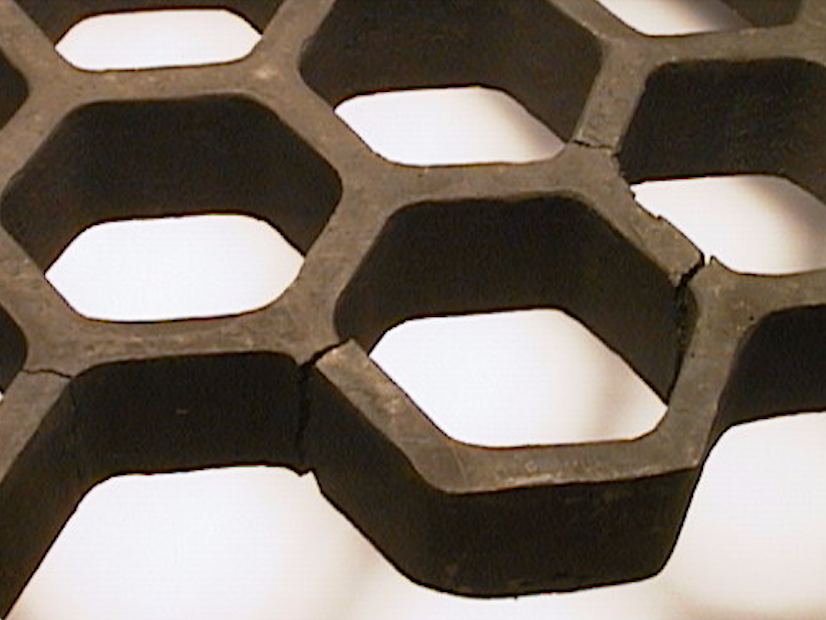

Fixture and Rack Material and Design as one main impact on distortion. See the
Figure which shows the
Coefficients of Thermal Expansion (C.T.E.) at room temperature and at 1,000 C for different heat resistant materials: for CFC there is in the fiber direction almost no expansion to high temperatures. Meaning that
Fixtures made of CFC don't change their dimensions. Furthermore, CFC does not change its form as well.
We have proved our knowledge several times in industry. HTC's Step 2 distortion understanding is directly connected with Step 3 distortion problem solving.

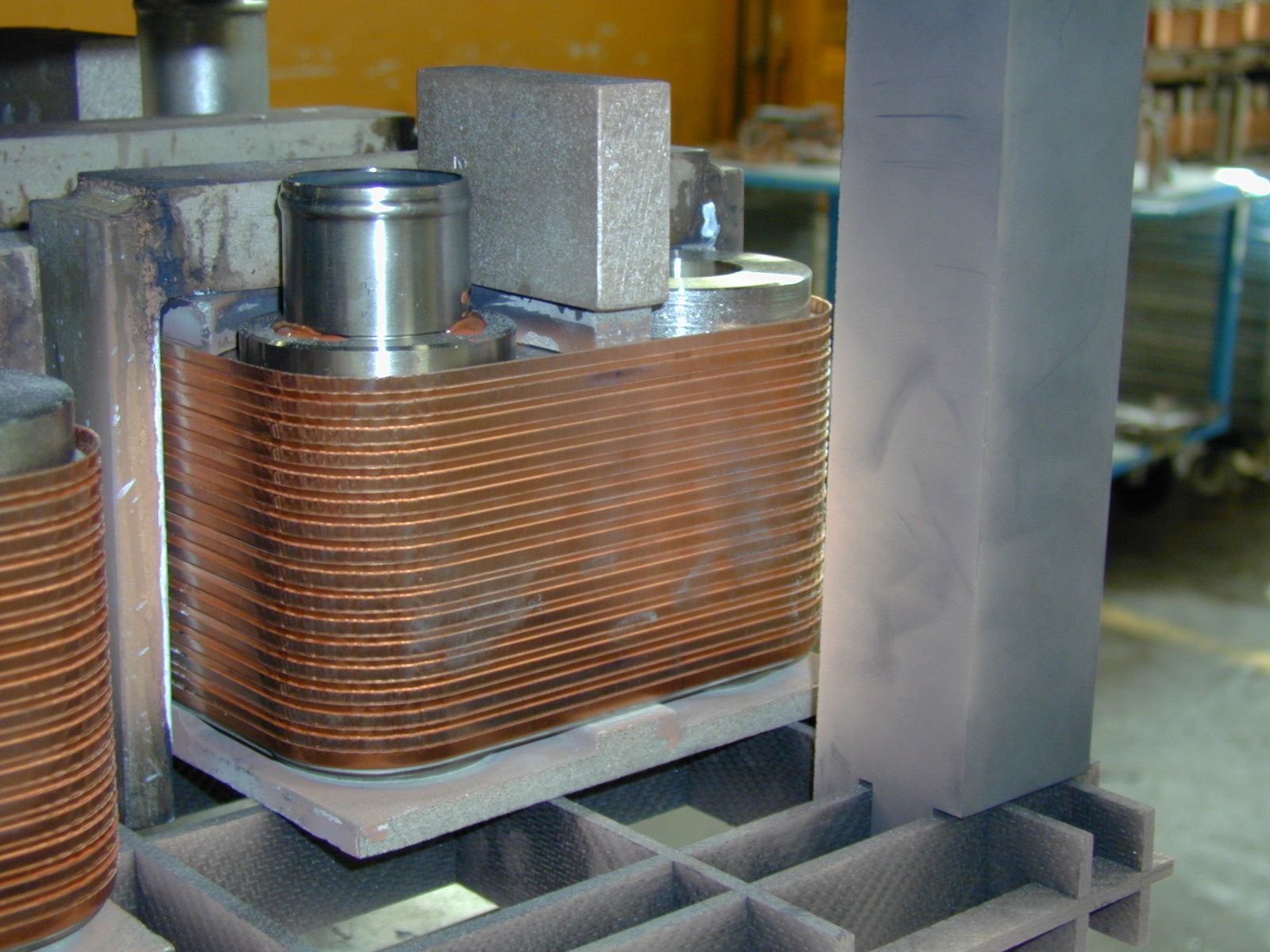

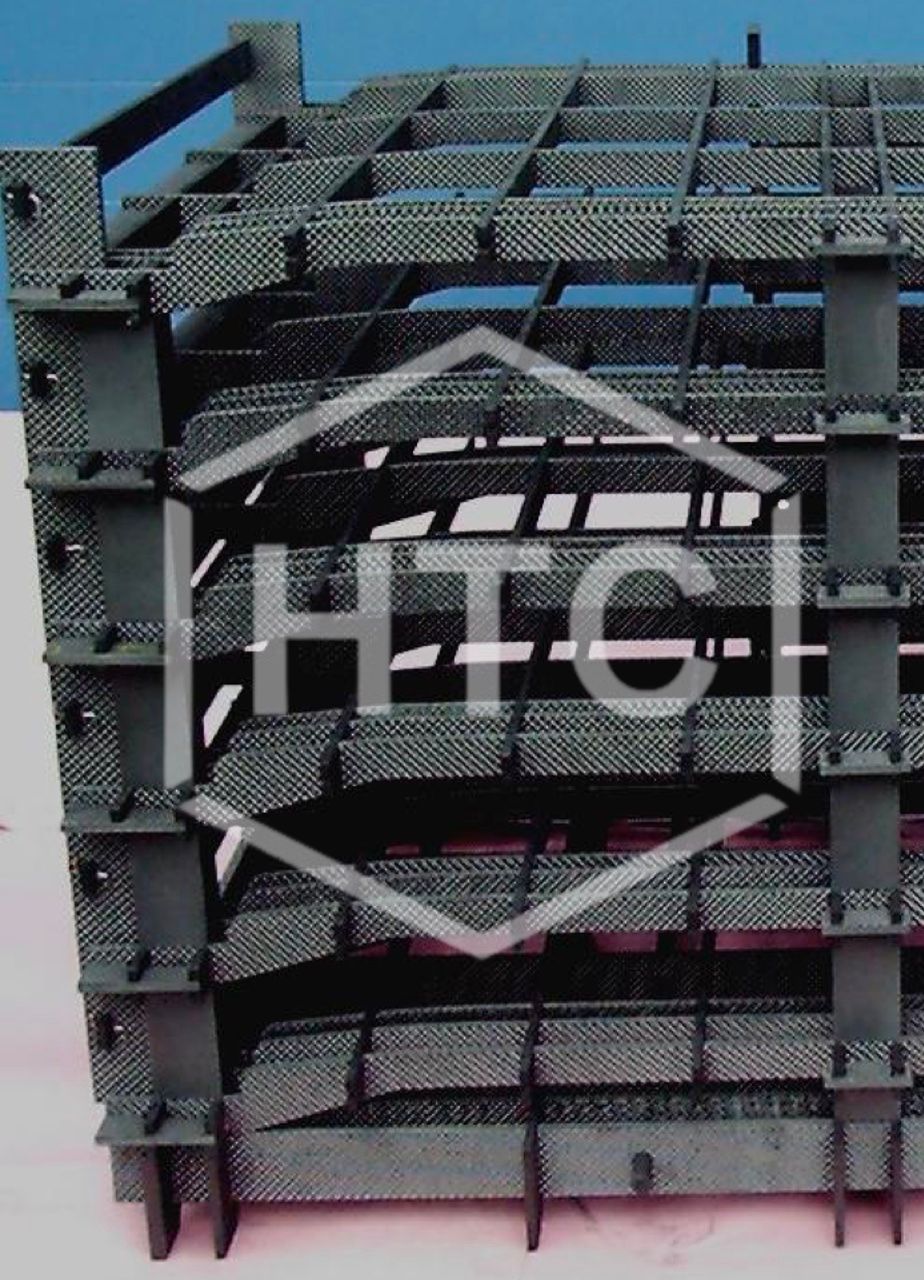

The main contributor are custom made best-in-class CFC-Fixtures and Racks and they bring usually great benefits to our customers.
We started this methodology in the mid of the 1990s.
Let’s bring excellence and a high profitability into your everyday operations.
Get your custom quote today Request Quote
Contact Us:
info@High-Temperature-Concept.com
www.high-temperature-concept.com
Sources: HTPro, Feb/Mar 2019, No. 2, page 2 and sources/references Dr. Jorg Demmel
What do you see? An impressive aircraft engine, right? High Temperature Concept designs and delivers custom made, best-in-class CFC Fixtures and Racks for heat treatment, manufactured in the USA. But what does the picture have to do with it?

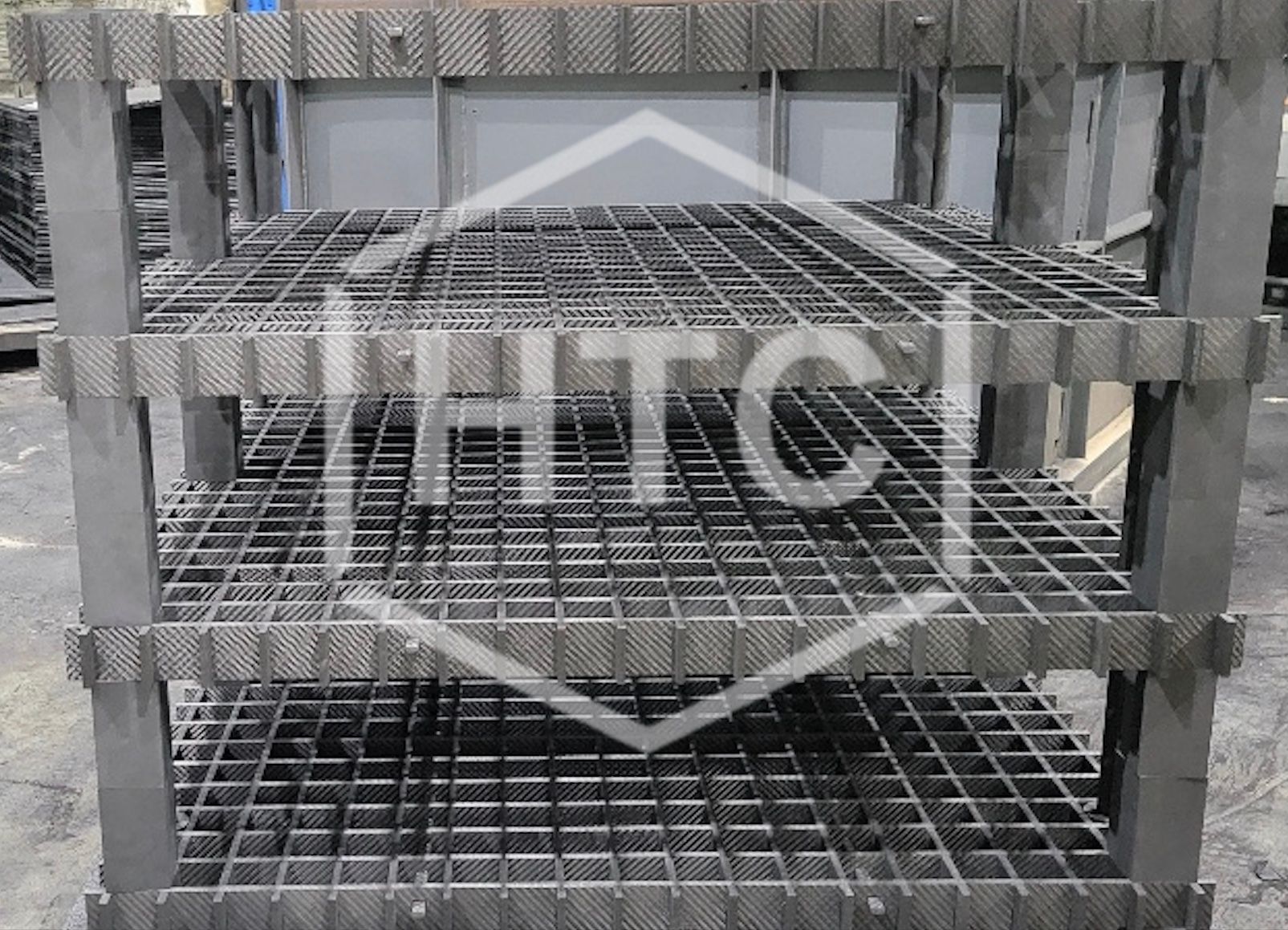

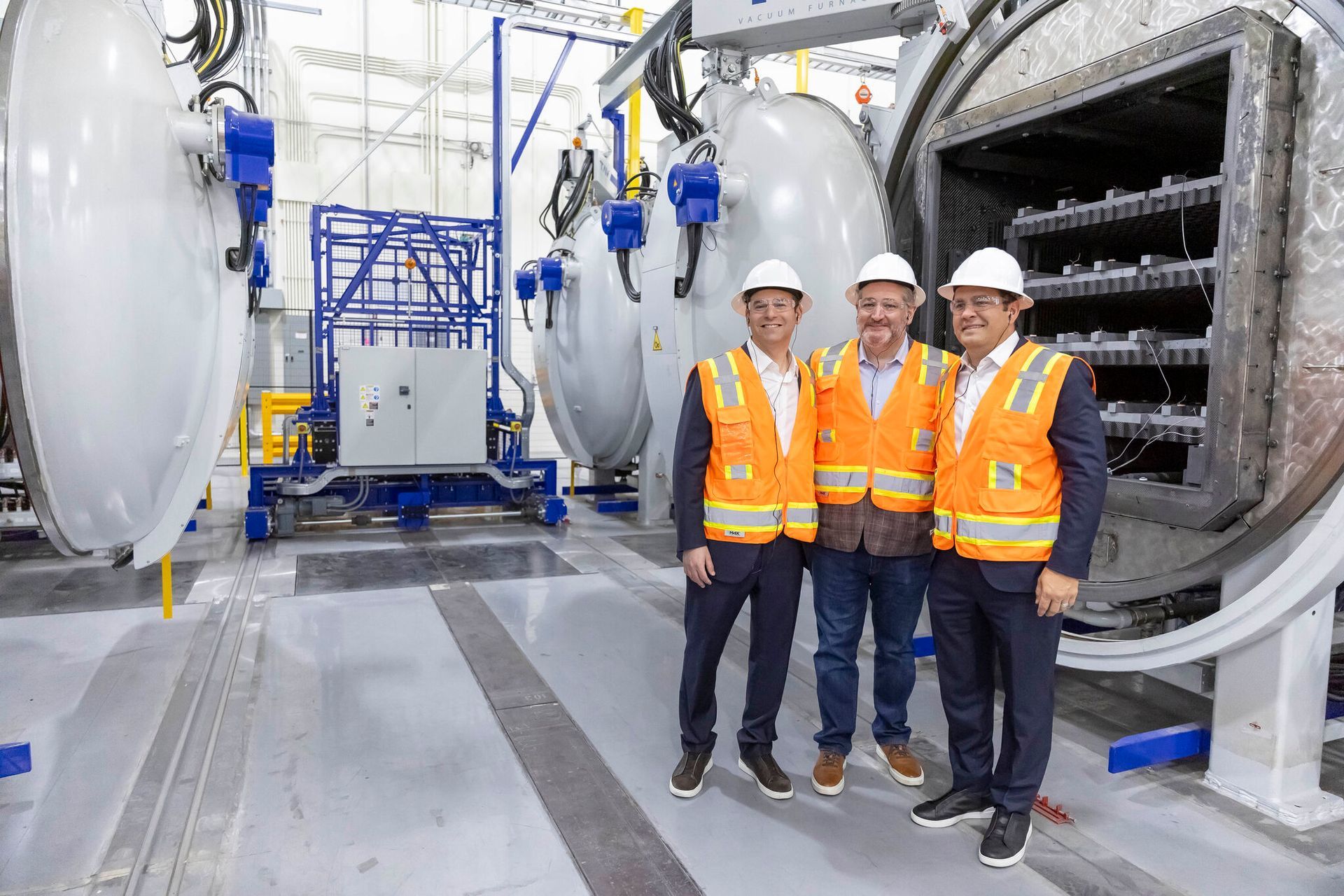

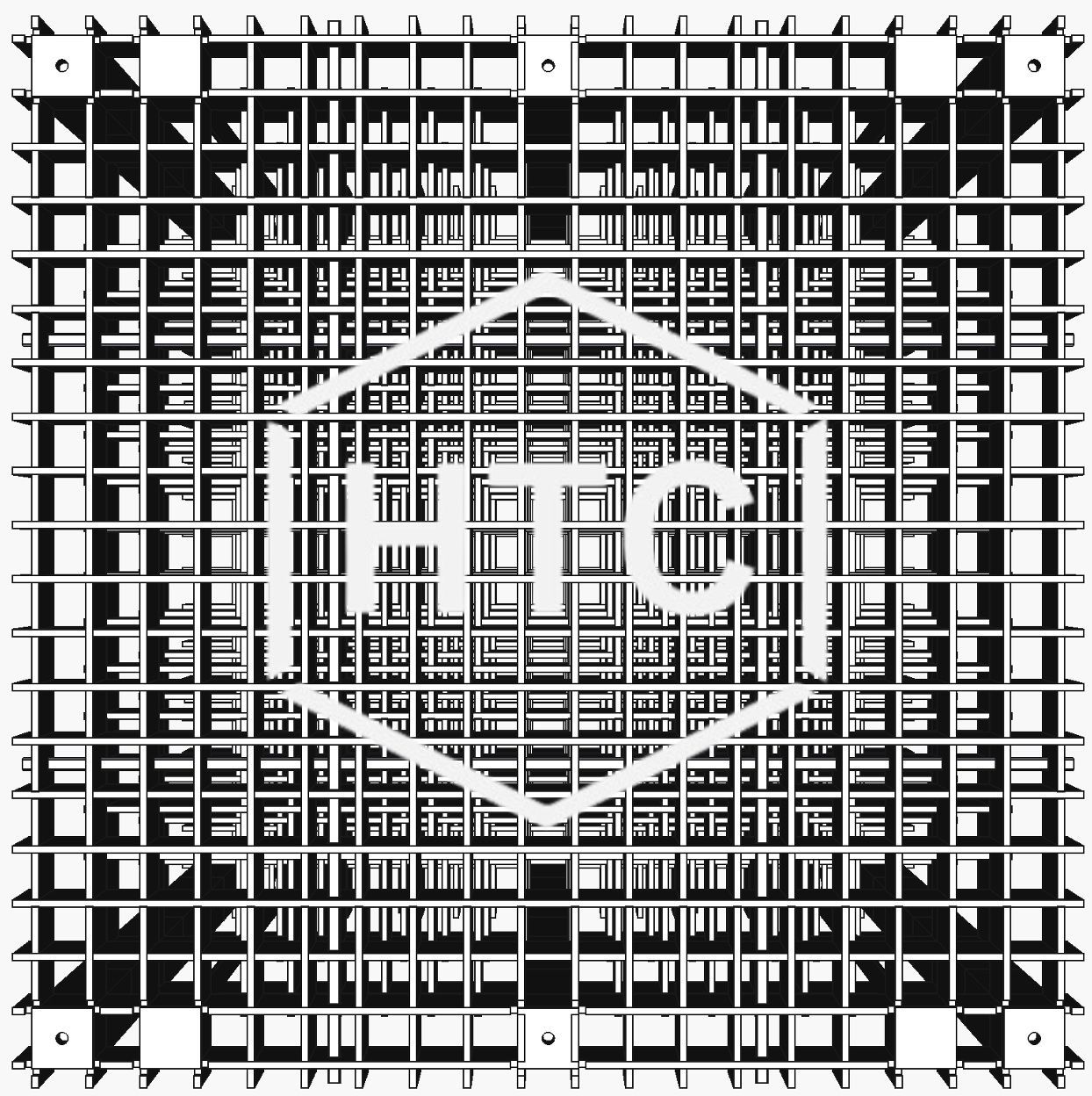

High Temperature Concept always strives to provide the best for our customers. Above you see an image provided by MP Materials. In the background, you see one of our modular CFC Racks in a vacuum chamber furnace for sintering of rare earth materials . We have all you need to succeed: The CFC Fixture and heat treatment competence at High Temperature Concept for over 30 years (it resulted in a successful market launch of a new generation of fixtures and my PhD thesis), and the material design and manufacturing competence at Americarb Inc. Together, we are a CFC Fixture and Rack Manufacturer in the USA with a high vertical integration and short lead times with competitive prices. Below you see some monolithic CFC fixtures for a vacuum hardening process, including High Pressure Gas Quenching for gears . The whole process is fully automated: from soft machining to the internal heat treatment shop, and finally to hard machining.
